Product Overview

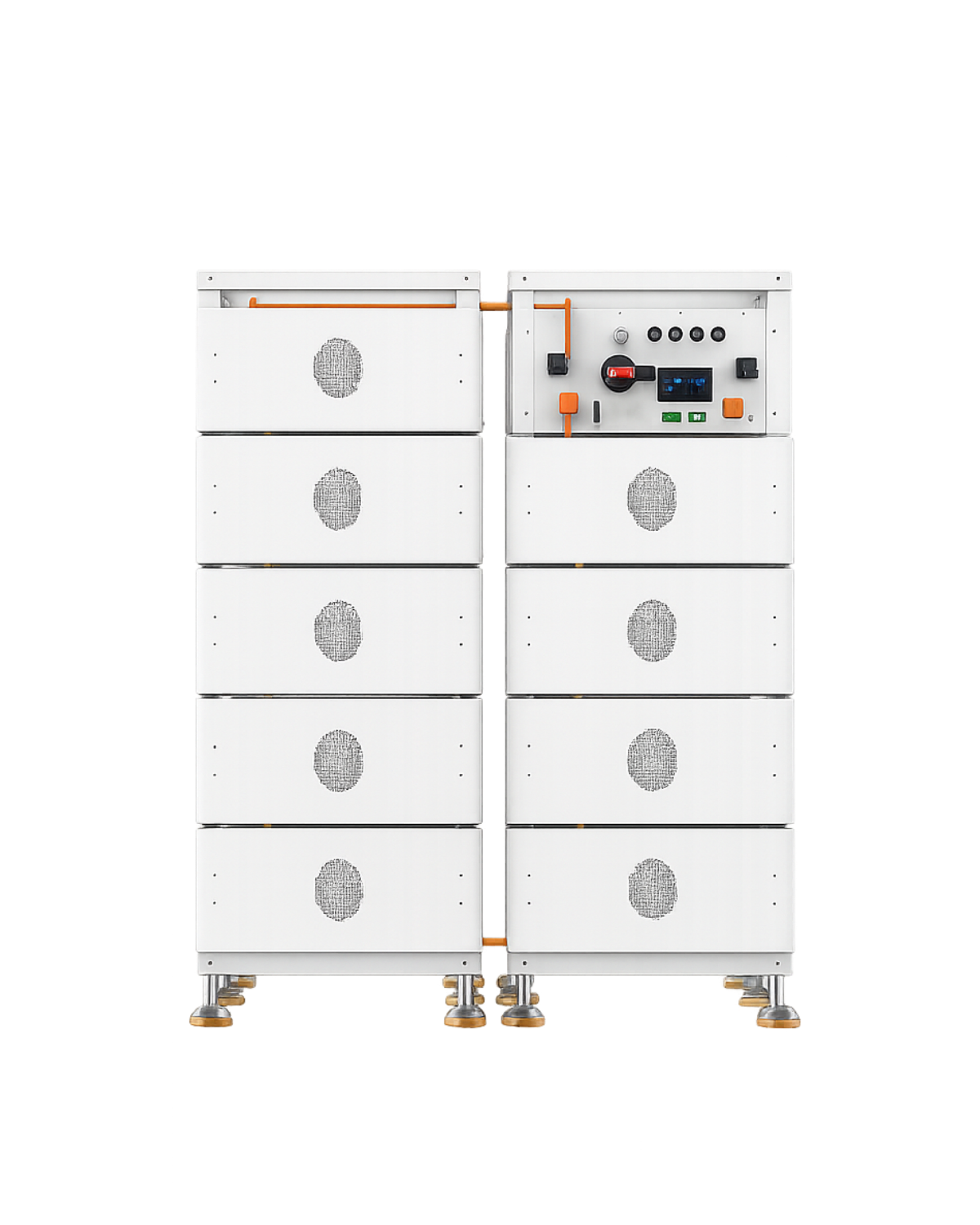

The EnerRack-H50 HV Battery ESS is a rack-based, high-voltage energy storage system engineered specifically for commercial applications. Offering exceptional scalability, it allows configurations from 60 kWh up to 224 kWh to seamlessly meet the diverse energy demands of small to medium commercial scenarios.
Designed for peak efficiency, the system supports advanced bidirectional charging and discharging, backed by integrated reverse current protection. Its compact, modular footprint not only optimizes space but also streamlines deployment, ensuring faster, hassle-free on-site installation.
Key Features
-
Integrated Modular Design
High-voltage architecture engineered for superior efficiency and scalability.
-
Broad Inverter Compatibility
Seamlessly integrates with leading inverter brands, including Growatt, GoodWe, Solis, Deye, Megarevo, and more.
-
Rapid Deployment
Compact modular design and simplified wiring significantly reduce on-site installation time and future maintenance overhead.
-
Advanced Safety Framework
Built with inherently stable LiFePO₄ (Lithium Iron Phosphate) chemistry and features an optional, dedicated fire suppression system for maximum protection.
|
Technical Specifications
| Battery System | |
| Typical battery Energy | 112.5 kWh | 144.6 kWh | 160.7 kWh |
| Number of modules | 7 | 9 | 10 |
| Battery system voltage | 358.4 V | 460.8 V | 512 V |
| Battery system rated charge current | 150A |
| Battery system rated discharge current | 150A |
| Module energy | 16.07 kWh |
| Nominal Voltage | 51.2V |
| Cell configuration | 1P16S |
| Cell capacity | 314Ah |
| Operating voltage range | 44.8V ~ 57.6V |
| Operating temperature range | -20～55℃ |
| Storage temperature range | -20～60℃ |
| Depth of Discharg | >90% |
| Cycle life | >6,000 cycles @25℃, 70% EOL |
| Communication | RS485/CAN |
| Module dimensions | 779*440*235mm |
| Module weight | 135 kg |
| Cell compliance | UL9540/1973, IEC62619 |
| Transport | UN38.3 |
| HV Box | |
| Rated voltage | 716 Vdc |
| Max. rated current (DC) | 200A |
| Fire rating | UL94V-0 |
| Cluster voltage measurement error | <±1%FS over full operating range |
| Operating temperature range | -25～85℃ |
| Communication | RS485/CAN/TCP |
| Cooling | Forced air cooling |
| Ingress protection | IP20 |
| Dimensions | 757*440*235mm |
|
