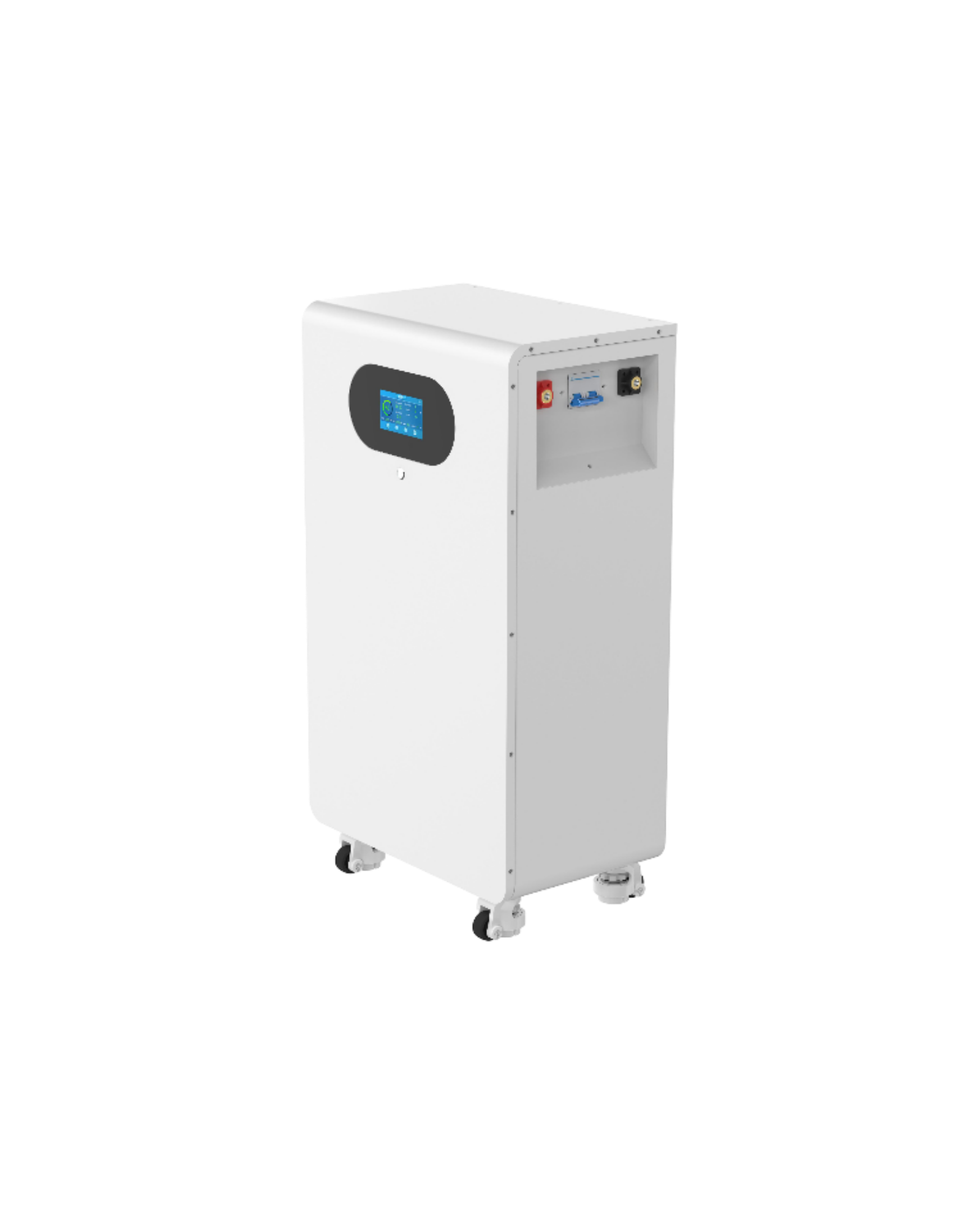

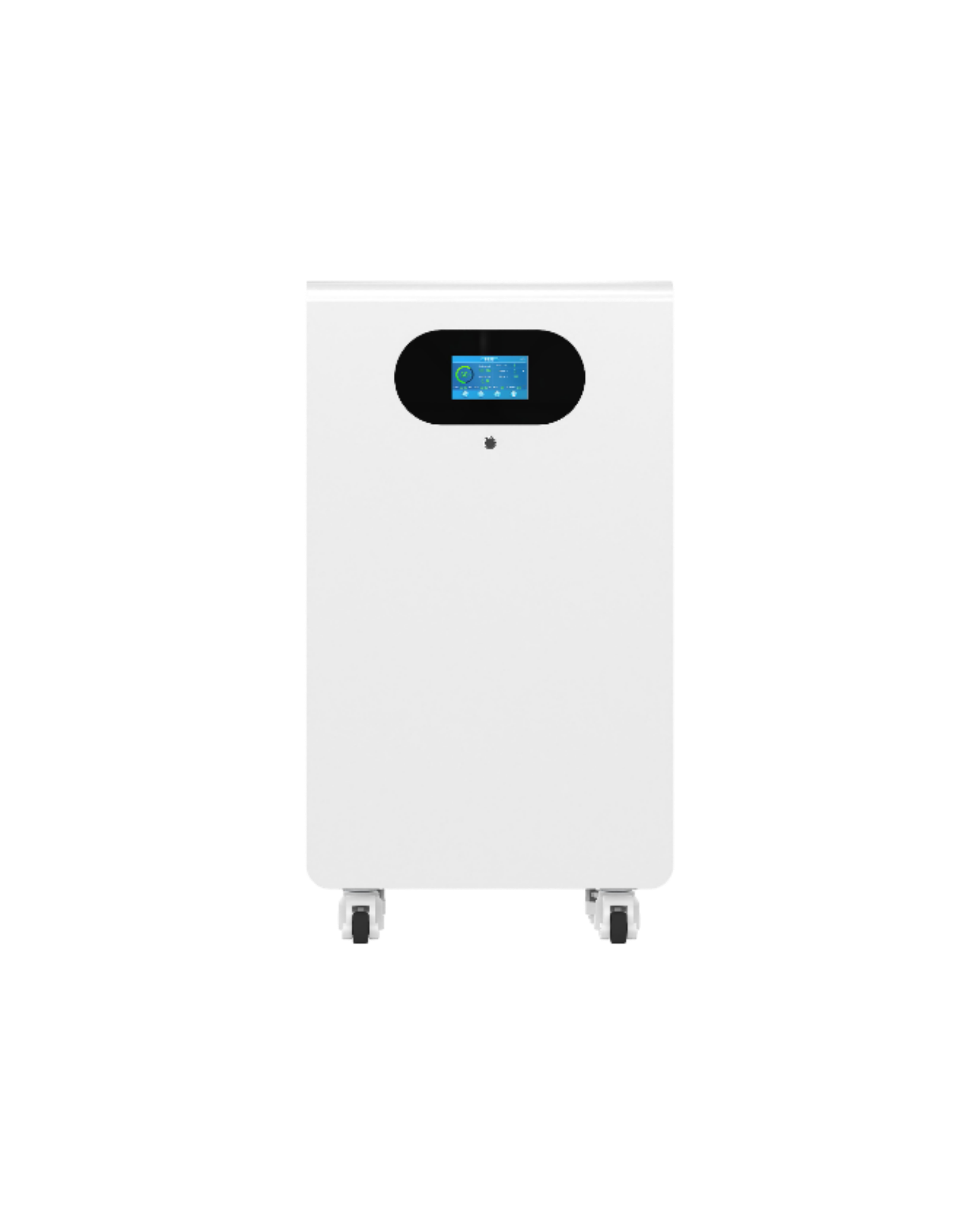

14kWh Low-voltage Battery System EnerPack-M14
14kWh Low-voltage Battery System EnerPack-M14 - Image 2

14kWh Low-voltage Battery System EnerPack-M14

Universal wheels

Great mobility

Production lead time: 30 Days

OEM label: Yes

Inquiry Form
Category: Tags: , , , ,

Description

Product Overview

The EnerPack-M14 is a low-voltage battery system built with industry proven 280Ah battery cells, it offers a compact, high-efficiency mobile energy storage system ideal for homes, standalone houses, small commercial loads, and more.

Its universal wheel design ensures effortless installation and mobility, making it a smart, versatile choice for diverse applications.

Key Features

  • Maximum Safety

    Equipped with reliable and mature 280Ah LFP cells and an integrated aerosol fire suppression system for enhanced safety.
  • Smart Monitoring

    Features a user-friendly touchscreen panel for seamless monitoring and control.
  • High Energy

    Delivers high energy capacity in a compact, space-efficient design.
  • Effortless Deployment

    Designed with durable universal wheels for easy installation and mobility.

Technical Specifications

ModelEnerPack-M14EnerPack-M16
Rated voltage51.2V
Cell configuration1P16S
Rated cell capacity280Ah314Ah
Rate energy14.34kWh16.03kWh
Useable energy≥95%
Charge voltage57.6V±0.2V
Discharge cut-off voltage44.8V
Rated charge current140A150A
Max. charge current200A200A
Continuous current140A150A
Max. pulse current200A
Charge/discharge temperature0℃ to 45 ℃/-20℃ to 55℃ ±25%R.H.
Storage temperature0℃ to 35℃ ±25%R.H.
Cycle life≥5000 cycles
Self-discharge<3% per month
IP classIP20
Product Dimensions450*295*845mm
Net weight116 kg
MonitoringOn screen/CAN/RS485
Safety certificatesIEC62619
TransportUN38.3
