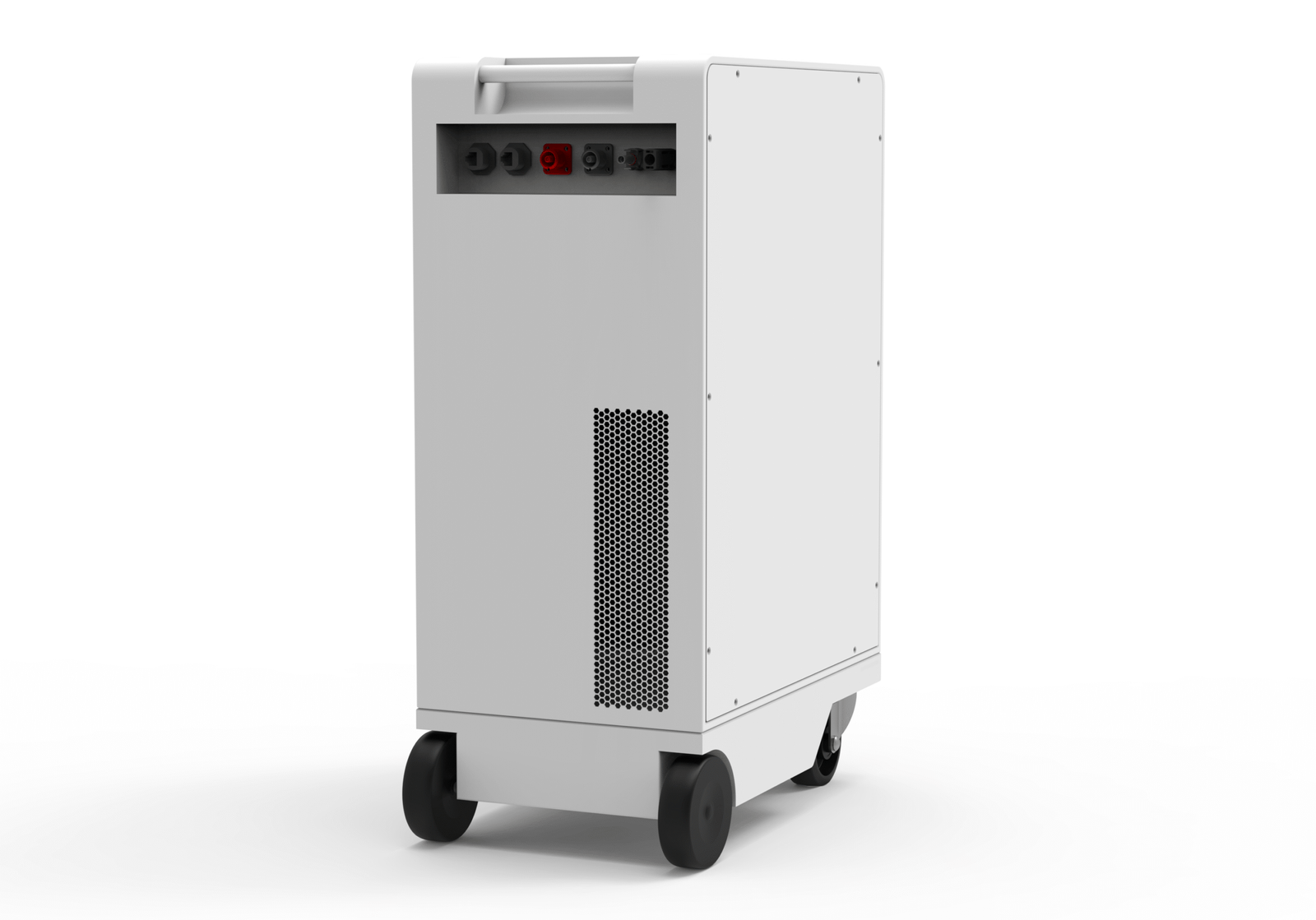

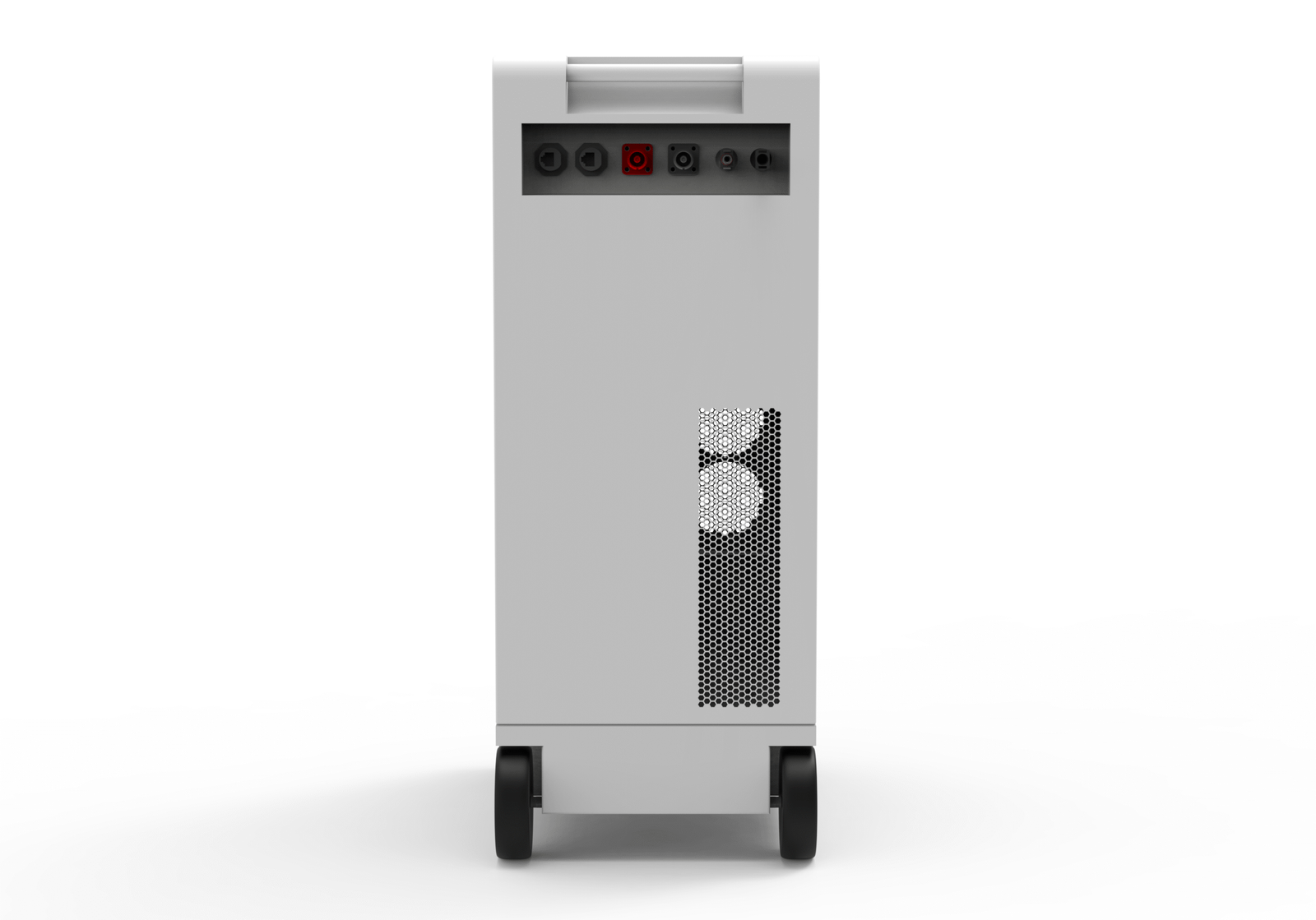

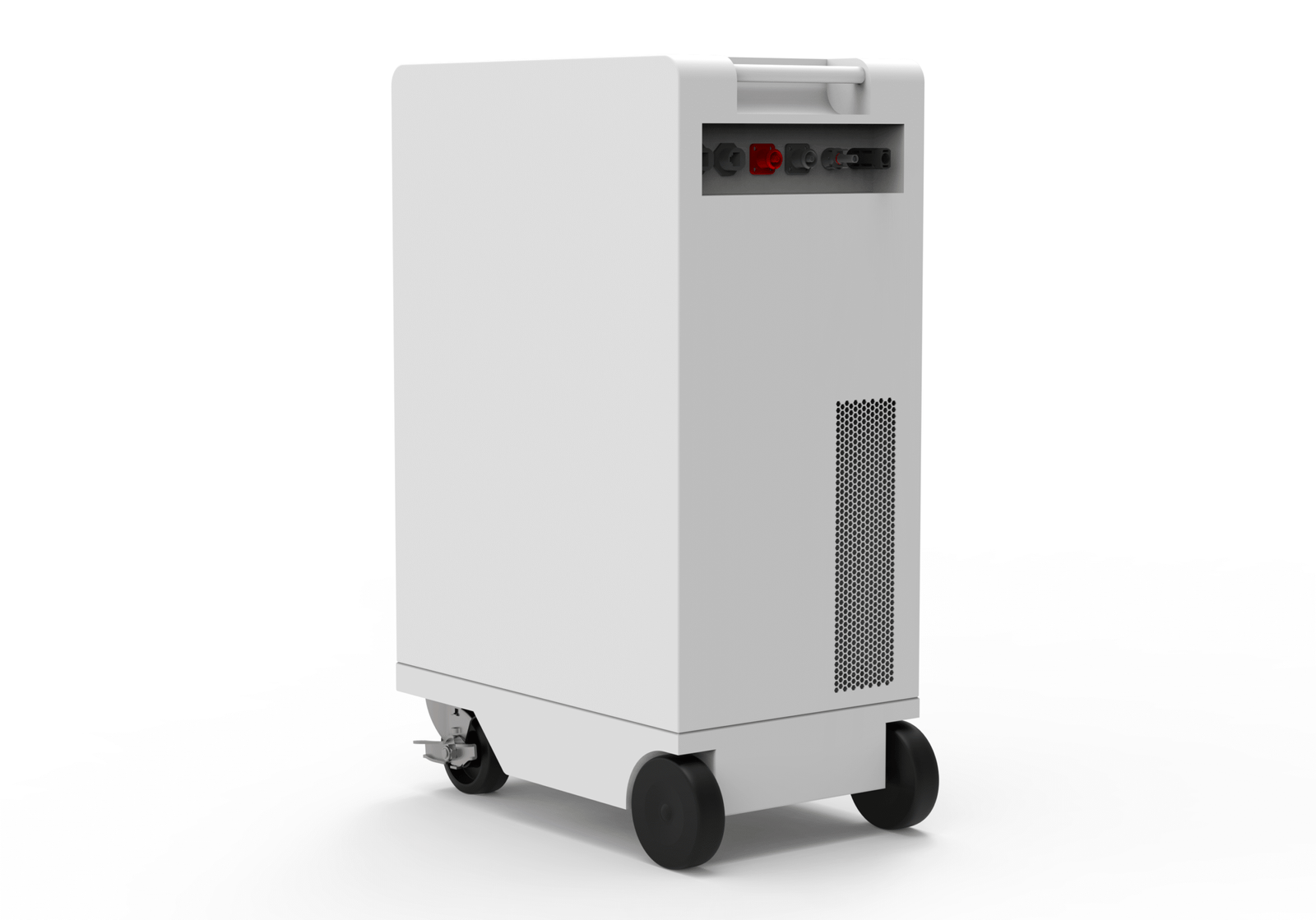

5kW/5kWh All-in-one Energy Storage System

Universal wheels
Great mobility
Solar PV connection
Production lead time: 30 Days
OEM lable: Yes

Get a quick quote!

Blank Form (#3)

The All NEW (2026 Edition) EnerGo-A5 is a compact, high-efficiency all-in-one mobile energy storage system, ideal for homes, standalone houses, small commercial loads, and more.

Equipped with a 5 kWh LFP battery and delivering 5 kW charge/discharge capacity, it supports PV connections to help achieve true energy independence.

Powered by advanced LiFePO₄ technology, the EnerGo-A5 offers exceptional safety, high energy efficiency, and long service life.

Its universal wheel design ensures effortless installation and mobility, making it a smart, versatile choice for diverse applications.



Product Highlights

Fully Integrated and Engineered

  • Built with semi-solid state LFP cells and an integrated aerosol fire suppression system for superior safety.

Intuitive User Interface

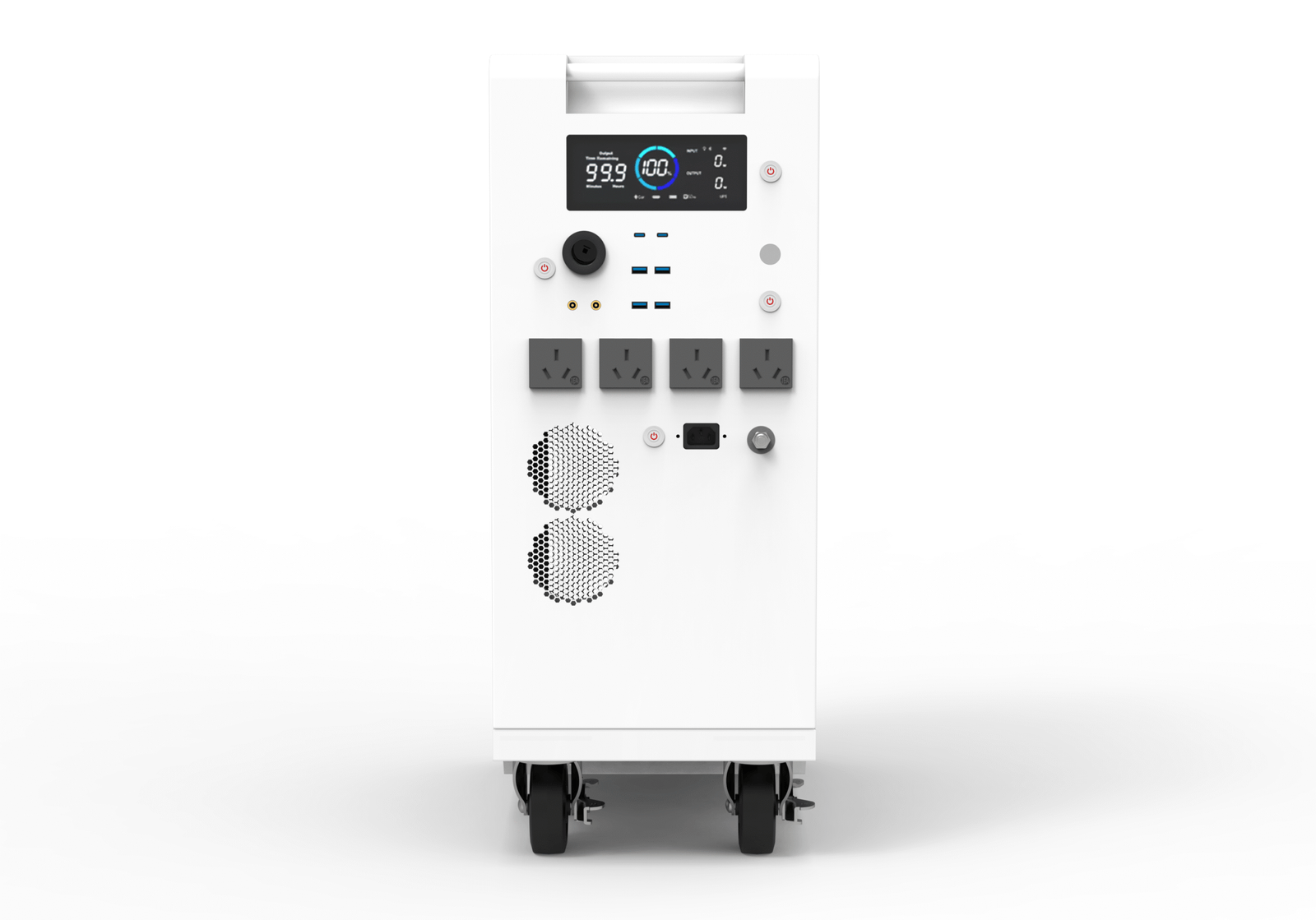

  • User-friendly touchscreen panel for effortless monitoring and control.

Flexible and Customizable

  • High energy capacity in a compact, space-efficient design to suit diverse needs.

Effortless Deployment

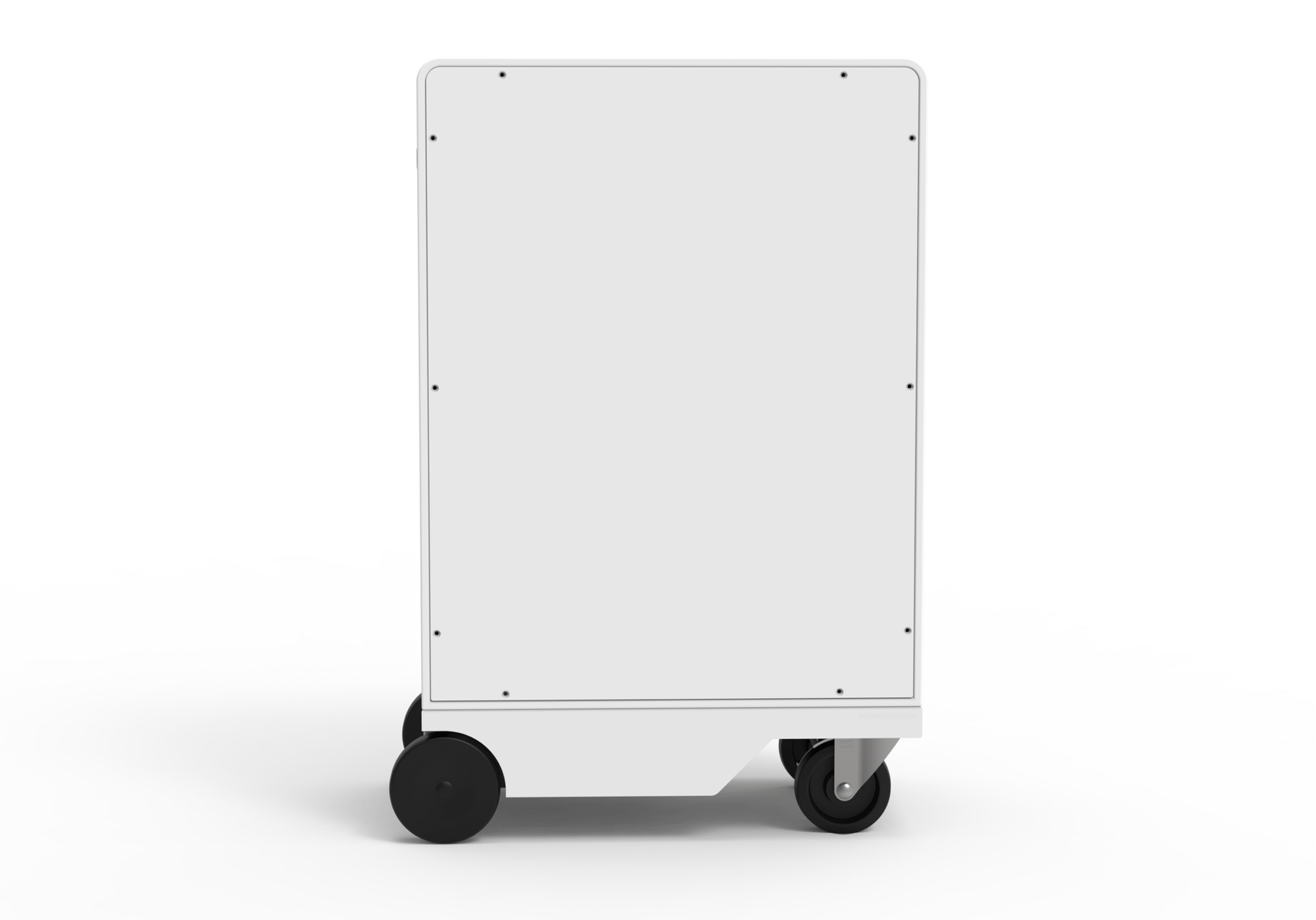

  • Equipped with robust universal wheels for easy installation and enhanced mobility.

Specs

MODEL EnerGo-A5
Photovoltaic
Maximum PV input power 5,000W
MPPT voltage range 120Vdc ~ 450Vdc
Maximum PV charge current 80A
Battery
Battery voltage 51.2V
Rated energy 51.2kWh
Cell chemistry LFP
Designed lifespan >3,500 cycles
Battery management system Yes
Maximum charge current default at 50A, maximum at 80A
AC Output
Rated AC output power 5,000W
Rate AC voltage 220Vac, 50/60Hz
Over load power 102%<Load≤110%, 1 minute
110%<Load≤130%, 10 seconds
130%<Load≤150%, 3 seconds
Load>150%, 200 ms
Switch time <10ms
AC/DC Interface
AC output port 220V/10A x 4
USB A port 60W/100W x 4
Type C port 65W x 2
12V DC port 12Vdc/10A x 1
Mechanical Data
Ingress protection IP20
Running noise <55dB
Charge
AC Charge 10%~80% in 1.5 hours
AC Charge 80%~100% in 2 hours
Working temperature
Charging 0℃ ~ 45℃
Discharging -20℃ ~ 45℃
Dimensions 700*424*482mm
Net weight 58 kg
