Product Overview

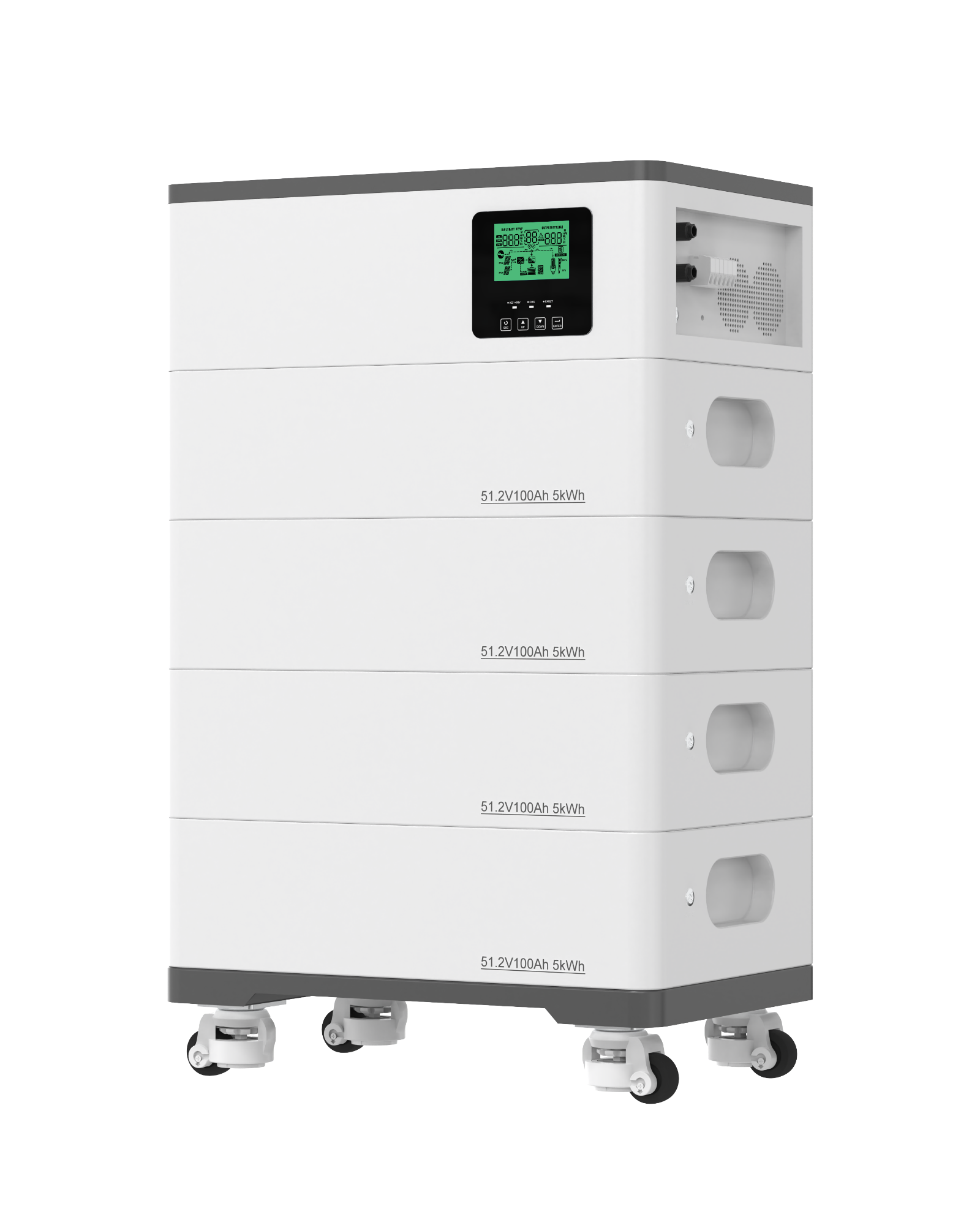

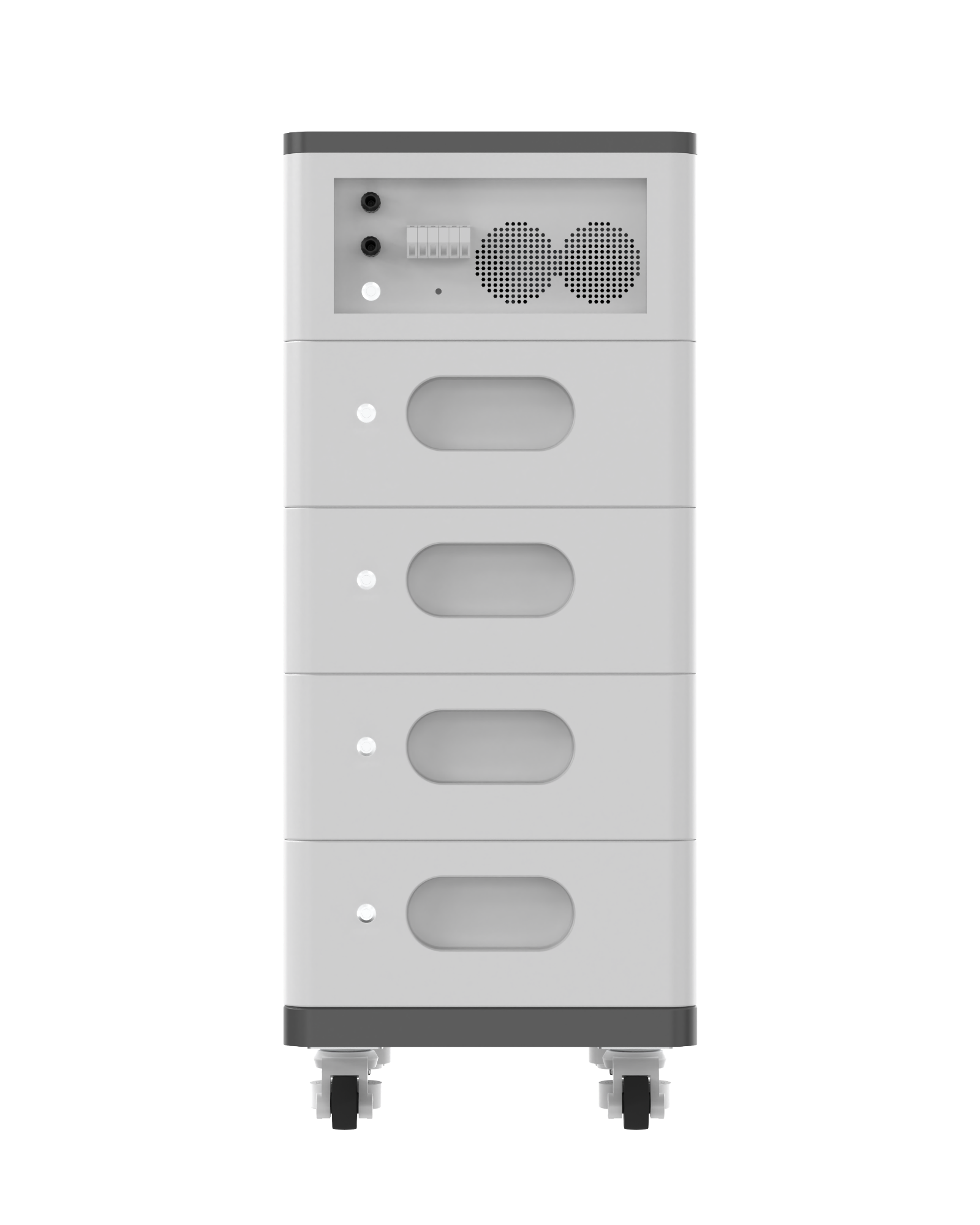

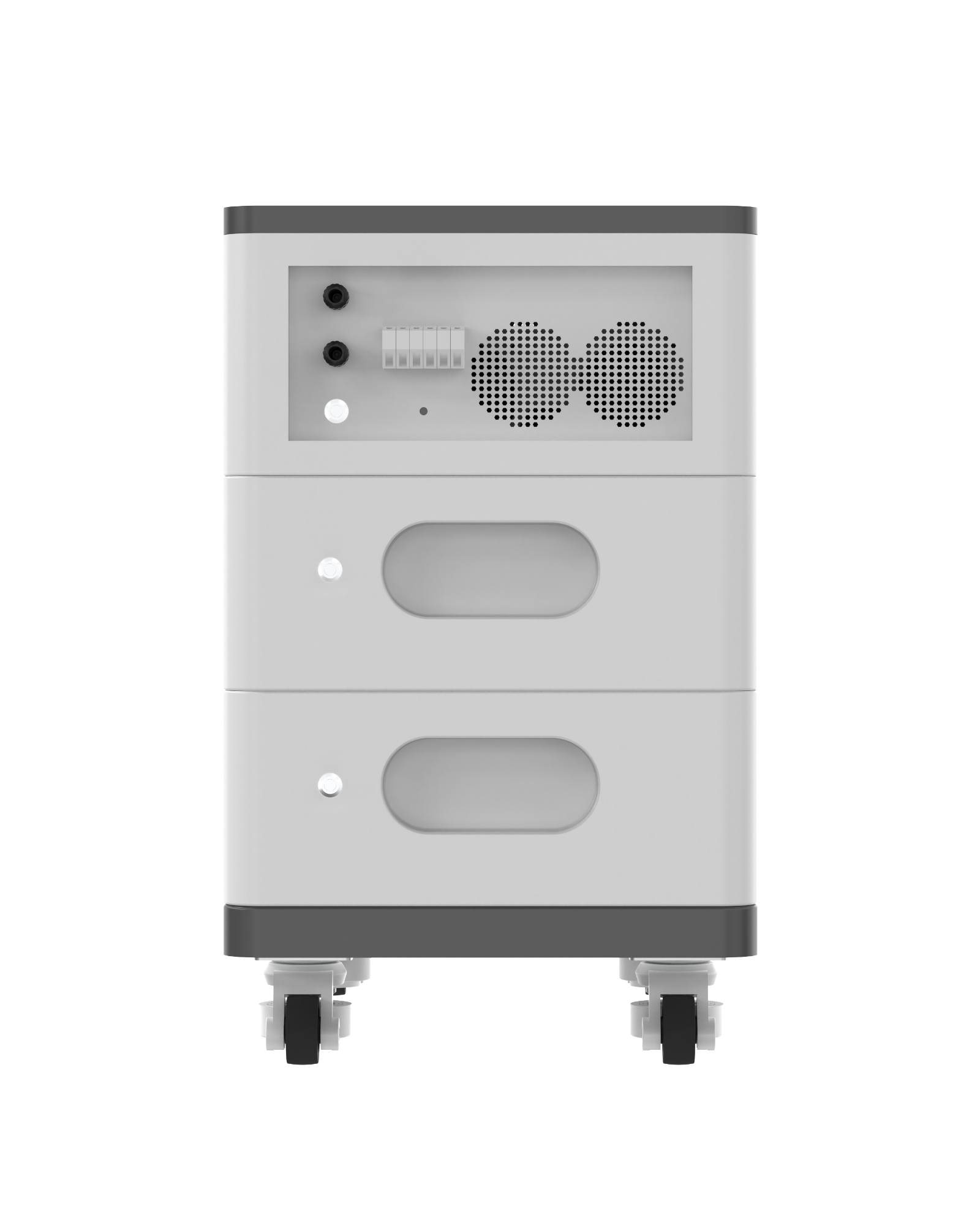

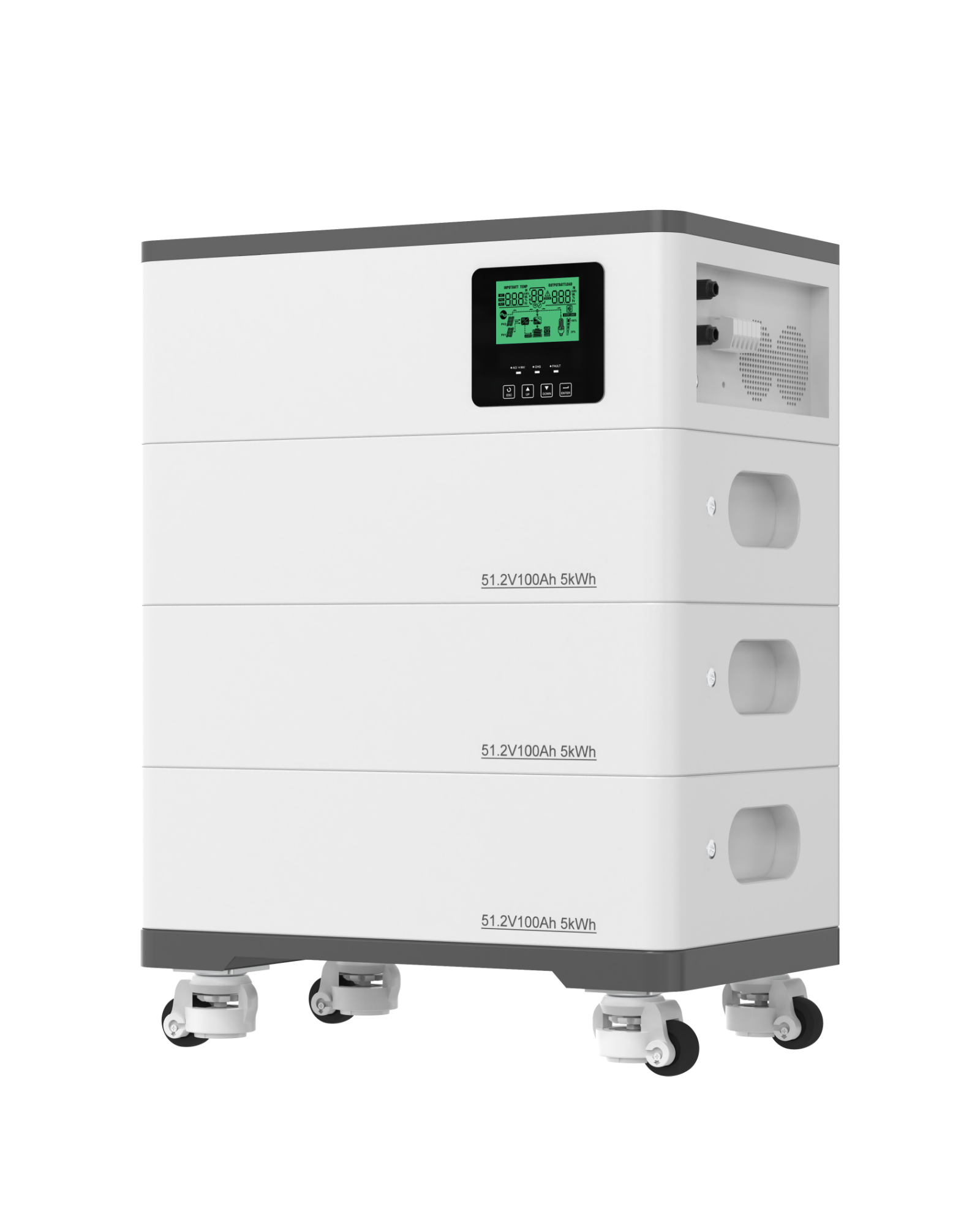

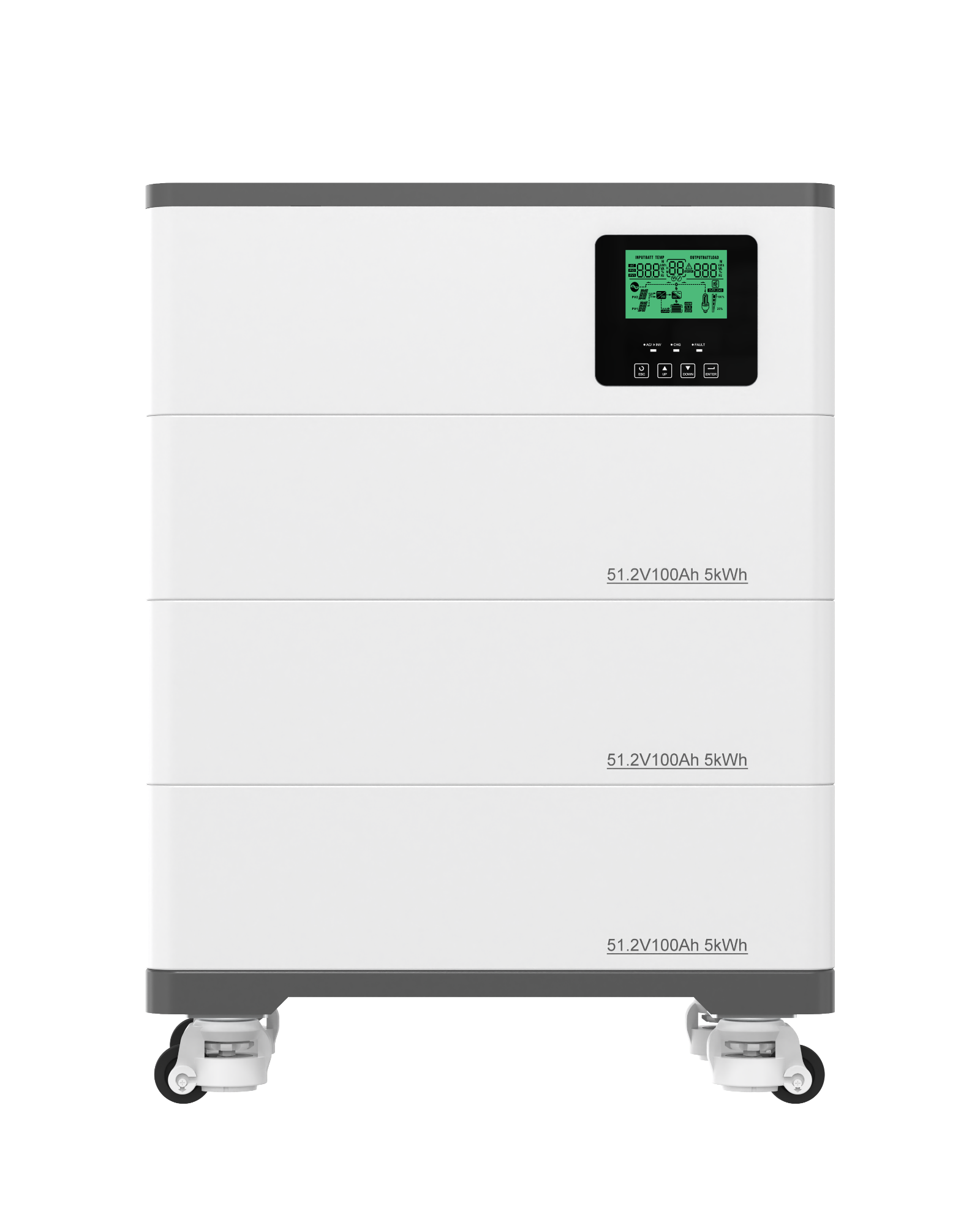

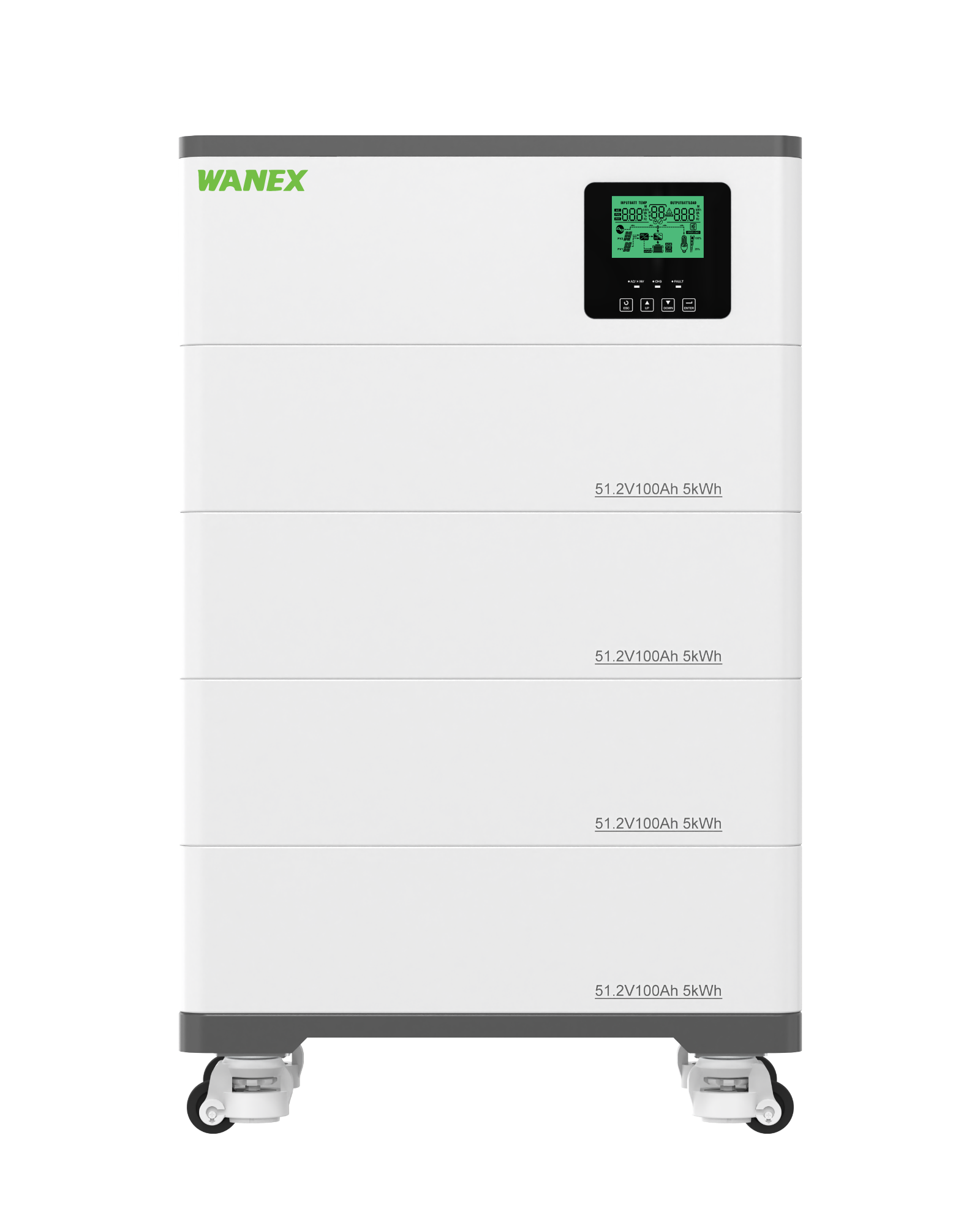

The EnerGo-A5 is a stackable, all-in-one solar energy storage system (ESS) that seamlessly integrates an inverter, battery charger, UPS-level switching, and battery storage into a single unit. Its modular design eliminates complex wiring, ensures fast deployment, and provides maximum system flexibility.
With a highly scalable architecture, the system expands capacity from 5.12 kWh up to 30.72 kWh. A built-in aerosol fire suppression system and advanced multi-layer safety mechanisms provide total peace of mind across residential, commercial, and industrial applications.
Key Features
-
Scalable Design
Modular stackable units allow flexible capacity growth with a lower upfront investment.
-
Effortless Deployment
Plug-and-play modules reduce wiring complexity, simplify transport, and enable fast, hassle-free installation.
-
Smart Energy Management
Advanced EMS technology optimizes energy use in real time to prioritize self-consumption, lower electricity bills, and enable smart grid integration.
-
Low Maintenance
Standardized components improve system reliability, simplify servicing, and support rapid large-scale deployment.
|
Technical Specifications
| AC Input | |
| Rated input voltage | 230Vac, L+N+PE |
| Voltage range | 90~280±7Vac(Normal Mode) / 170~280±7Vac(UPS Mode) |
| Frequency | 50/60Hz Auto Adaptive |
| Max. Charge current | 80A (for battery) |
| Short current protect | 35~45A |
| Charge efficiency | ≥95% |
| UPS Bypass overload power | 8.0 kW |
| UPS Transfer time | 20ms(Normal Mode)/10ms(UPS Mode) |
| AC Output | |
| Rated power | 5.5 kW |
| Surge power | 11KVA(0.3S) |
| Voltage range | 230Vac default , Selectable 220Vac~240Vac |
| Efficiency | ≥85% |
| Battery | |
| Rated battery voltage | 51.2Vdc@16S1P |
| Operating voltage range | 44.8~57.6Vdc |
| Rated battery energy | 5.12kWh @0.5P |
| Usable energy | > 90% DOD |
| Solar PV | |
| Max.PV charge power | 5.5KW |
| Operating voltage range | 120~450Vdc |
| Optimal PV nominal voltage | 300~400Vdc |
| Max. PV open-circuit voltage | 500Vdc |
| Max.PV charge current | 80A |
| Mechanical | |
| Ingress protection | IP20 |
| Storage temperature range | -15~30℃ ≤ 3 months / 0~25℃ (3~12 months) |
| Operating temperature | Charge: 0~45℃/Discharge:-20~50℃ |
| Relatige humidity | 5%~95% Non-condensing |
| Max. operating altitude | ≤3000M |
| Inverter dimensions | L600*W400*H310mm |
| Battery dimensions | L600*W400*H180mm |
| Package dimensions | Ineverter/Inverter: L690*W490*H400 mm |
| Product weight | Ineverter: 26±5 kg / Battery: 28±5 kg |
|
